sp_msUpd% has too many arguments, sp_msUpd% expects parameter. Replication Procedures part 2

In previous post I explained basics of replication procedures. Now lets have a look into some common issues with these. Especially when you Publishing from two (or more) sources, same tables  into the  same destination (Subscriber).

Here is an example:

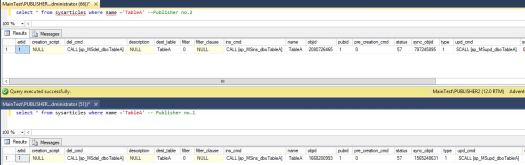

Twopublishers_articles

As you can see both articles from two different Publishers are using exactly same procedure. If you check Subscriber you will see only 3 (not 6) procedures for that table:

Subscriber_procs

In that specific scenario you need to be careful with any changes to schema on Publisher. Why? …..

Lets assume you have Subscriber that is getting data from two (or more) different sources (Publishers). TableA on Subscriber getting data from Publisher1 and Publisher2. By default replication procedure names will have the same name “sp_Msupd_dboTableA” , that means both publishers will be using exact same procedure for insert, updates and deletes. You are receiving request from DEV to modify that table. To be exact drop  a column. If you deploy change to Publisher1 only the replication procedure will be changed and new version (without dropped column) of the procedure will be applied on subscriber. The new procedure wont have that old column… but what about Publisher2? Publisher2 will be trying to execute procedure still with old column  and you will receive “Procedure or function sp_MSins_dboTableA has too many arguments specified.”.

Here is an example. We dropped column id_temp on Publisher1 and then inserted one row on Publisher2:

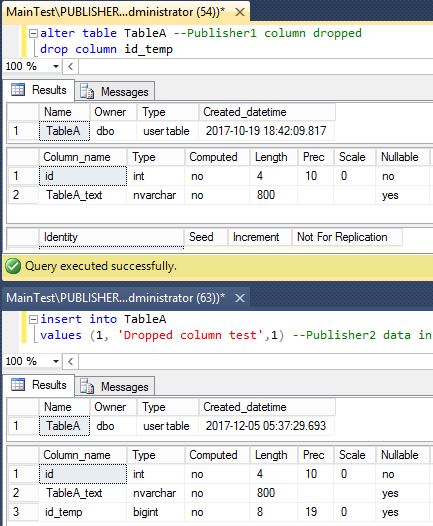

Column dropped

Once we did that Distribution agent for Publisher2 will start failing:

Dropped column error

How to solve it and/or how to prevent it to happen?

Solution

Once you get to that point when receiving such error you should follow these steps:

  1. Apply change (in our case drop column) on the second Publisher. This wont solve the issue straight away but it will modify replication procedure code to the same as we have on Publisher1. The DDL change will wait in the queue for delivery.
  2. As procedure on Subscriber has 2 instead of 3 parameters we need to modify that procedure manually and include 3rd parameter. modifying proc

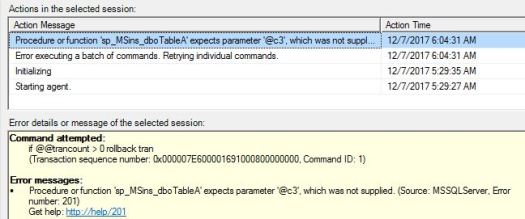

  3. Completing Step 2 will cause any inserts coming from Publisher1 failing as modified procedure expect @c3, meanwhile Publisher2 will deliver command that was failing before. You can also set default NULL value in the proc @c3 bigint=NULL and this wont cause error on Publisher1error_publisher1
  4. Wait until change from Step 1 will be replicated down to Subscriber. It will change back procedure to version without old procedure. This will automatically fix distribution agent that will be failing (Step 2). Both Publisher will have same schema and same replication procedure code for that table.

Similar step you need to follow if u add  new column to replicated table. Just instead of adding parameter you need apply old procedure (without new column) from second Publisher (Scripting out Replication Procedures).

Preventing it

You can prevent it to happen in two ways.

  1. While you are configuring Publication. When you are adding articles to Publication you can specify INS/UPD/DEL procedure names. Just use different names for Publisher1 and Publisher2. Below you can see that both are using different procedures.Replication_procs_changed
  2. You can always modify procedures names by using sp_changearticle procedure on a Publisher. However if are receiving error on distribution agent already, this change wont help as we are using Transactional Replication the “change article” will be in the queue behind the failing command. You need to be proactive and do that change before error occur. Here is an example of modifying Insert procedure:    exec sp_changearticle
    @publication=’Publication2′,
    @article=’tableA’,
    @property=’ins_cmd’,
    @value=’CALL sp_MSins_TAbleA_Publisher2′

Now important thing is that you can’t prevent this issue to occur for dropped columns as the old procedure (from second Publisher) will try to insert data into old column anyways and column will be missing. If so happens follow the steps I provided in that post.

The Best way to avoid issues with replication procedures is working closely with DEV when doing schema changes and configure you publications as mentioned above.
