December 4, 2018

Replication Agent Profiles explained Part 1

As we know there are 3 Agents that are needed in order to Transactional Replication to work: LogReader, Snapshot and Distribution Agent. Each with different role. Each of these is running under given Agent Profile. What is Agent Profile? In short: these are the settings that our Replication Agents are running with, such as Batch sizes, History level settings etc. Let’s go into the details

Agent Profiles GUI (Replication Monitor)

You can change and see profile setting by going to Replication Monitor, open given agent (Snapshot, Log reader, Distribution):

Once you open it you can see stock standard SQL Server Agent Profile with Default profile as a current one if nothing been changed since Replication configuration:

You can create your new custom profile by clicking New and using one of the System profiles as a base of that user profile:

In order to see ALL settings that you can set you need to untick the checkbox. Otherwise you will see only settings used by the profile you choose at the beginning :

In order to change agent profile you just need to choose agent profile and restart given Replication Agent (from SQL 2014 SP3 the restart of the Agent is not necessary)

Agent Profile T-SQL

As always you can do exactly same thing using T-SQL.

Here are some useful procedures that can help you manage these. All these procedures need to be executed on distributor.

These need to be run on Distribution DB:

exec sp_help_agent_profile – list all profiles that are present on a given distributor. It is also showing which profile is a default for newly created agents

exec sp_help_agent_parameter – shows all parameters that are set for all profiles. @profile_id can be provided to show only settings for given profile.

Here are some system tables can be run on msdb database on distributor, these are pretty much base tables used by procedures I mentioned before:

select * from [dbo].[MSagent_profiles]
select * from [dbo].[MSagent_parameters]
select * from [dbo].[MSagentparameterlist]

If you want to change profiles settings or change assigned profile to given agent you need to use following procedures.

exec sp_add_agent_parameter – adding parameter to agent profile
exec sp_add_agent_profile – adding new profile
exec sp_change_agent_parameter – changing parameter of a given profile
exec sp_change_agent_profile– changing description of a given profile
exec sp_drop_agent_parameter – dropping parameter from the given profile
exec sp_drop_agent_profile – dropping agent profile

exec sp_update_agent_profile – assigning new profile for given Replication Agent

Here is small script that will give you a distribution agents mapped to agent profiles and what parameters these has set.

select a.name,p.profile_name,p.def_profile, par.parameter_name,par.value from MSdistribution_agents a
join msdb.[dbo].[MSagent_profiles] p
on a.profile_id = p.profile_id
join msdb.dbo.[MSagent_parameters] par
on p.profile_id=par.profile_id

As you can see you can add/modify agent profiles either via GUI or T-SQL. Same relates to assigning profiles to give agents (distribution/logreader etc.) however in this case you can “hard-code” the agent profile into given replication agent job. You can read about replication jobs more over here: Understanding Replication Agents Part 2. You can add -ProfileName in the replication agent parameters and then this setting will overwrite the one you can see in GUI or using T-SQL. You can also specify batch sizes and much more. You can check all agent parameters over here: https://docs.microsoft.com/en-us/sql/relational-databases/replication/agents/replication-distribution-agent?view=sql-server-2017

I would not recommend that as then you loosing visibility of what is really going on and under which profile the agents are running. Here is an example… I put in the job parameter -ProfileName [Default agent profie] and did restart the job:

I have change profile using GUI to Continue on data consistency errors:

Then I deleted one row on subscriber and tried to delete same row on Publisher. Running on Continue on data consistency errors profile agent should skip the error. But in our case we hard-coded the profile in the job…. and that is why we are getting error anyways:

I never put profile name (or any other related to profiles parameters) into the job directly and I strongly recommend the same to everyone.

In next blog post I will go more into details on some of the parameters used in Agent Profiles. In some cases you want to play around with these settings as it can improve performance of your replication.

January 11, 2018

Immediate_sync on vs off

This is one of the settings that can cause issues with growth of your distribution database or when running Snapshot. It is FALSE by default and it can be set on Publication level. You can check what setting you have by checking syspublications on published database or mspublications on Distributor and distribution database. Let me try to explain what impact have that setting to your replication setup. We are assuming your distribution retention is not “fixed set” like this @min_distretention=48, @max_distretention=48 but more like this @min_distretention=8, @max_distretention=48. More about how this works in the following post.

TRUE

Normal behavior when your retention is set to min=8 and max=48 will be that transactions that been delivered to subscribers and are older than 8 hour will be removed by distribution cleanup. However that changes with Immediate_sync set to ON. The transactions will be kept (even if delivered) until get older than 48 hours. Also it matters when you adding new subscribers. If Snapshot was generated within last 48 hours and you add subscriber it will use existing snapshot and deliver all the transactions that were marked for replication after snapshot generation. Here is an example.

We have Publication1 with TableA as an article and it is published to Subscriber, Subscriberdb database.

Initial_setting

Snapshot was generated within that 48 hour period and two rows added to TableA on Publisher.

Snapshot

Inserts

We are planning to add new subscription stream to same subscriber but to Subscriberdb_2 database. After the creation you do not need to run Snapshot again it will use old Snapshot and all transactions that been delivered afterwards.

New subscription_ON

You can see that it used old Snapshot as TableA has 0 rows (we inserted 2 rows before creating new subscription) and once you select from TAbleA on Subscriberdb_2 you will find two rows. These been delivered as normal replication transactions.

From my perspective there is one downside of that setting, especially when you are planning to add new articles quite often. Every time you add new article and want to send a snapshot of these new articles down to subscribers the Snapshot Agent will generate a snapshot for ALL articles with that Publication. In other word last Snapshot has been invalidated. Lets add TableB to that Publication1 and lets run snapshot.

The Snapshot will generate two articles:

However existing Subscribers will send down only new articles TableB:

The generation of Snapshot for ALL tables could be problematic when you publishing hundreds of large tables already. Adding one article will generate new snapshot for all of these tables and from my experience it will generate some locks on Publisher especially if Publisher is very busy.

Lastly the snapshot will be generated no matter if you add new articles or not. If someone will kick off snapshot by mistake it will still do snapshot for entire publication.

Lets have a look how it looks if this setting will be set to FALSE.

FALSE

First thing will be that will be different is that you will need to generate full snapshot every time you adding new subscription.

Second thing that will change is when your retention is set to something like that @min=0 and @max=72. All transactions that have been delivered will be cleaned up on the next Distribution Cleanup job run.

Third difference is that when adding new articles to existing publication the next snapshot run will generate ONLY files for new articles. Lets have an example.

First we changing setting to FALSE by running sp_changepublication:

changingto_false

Now lets add TableC into Publication1:

addingTableC

and run snapshot:

snapshot_with_false

As you can see Snapshot has been generated only for one Table, TableC. That is quite convenient especially when you adding one table into publication that already have hundreds of other tables.

Which settings you should choose? As always it depends on your environment. How often you adding article into Publication? How much space you have on your distributor? How busy is your Publisher? Can you afford of running snapshot for entire Publication?

December 7, 2017

sp_msUpd% has too many arguments, sp_msUpd% expects parameter. Replication Procedures part 2

In previous post I explained basics of replication procedures. Now lets have a look into some common issues with these. Especially when you Publishing from two (or more) sources, same tables into the same destination (Subscriber).

Here is an example:

Twopublishers_articles

As you can see both articles from two different Publishers are using exactly same procedure. If you check Subscriber you will see only 3 (not 6) procedures for that table:

Subscriber_procs

In that specific scenario you need to be careful with any changes to schema on Publisher. Why? …..

Lets assume you have Subscriber that is getting data from two (or more) different sources (Publishers). TableA on Subscriber getting data from Publisher1 and Publisher2. By default replication procedure names will have the same name “sp_Msupd_dboTableA” , that means both publishers will be using exact same procedure for insert, updates and deletes. You are receiving request from DEV to modify that table. To be exact drop a column. If you deploy change to Publisher1 only the replication procedure will be changed and new version (without dropped column) of the procedure will be applied on subscriber. The new procedure wont have that old column… but what about Publisher2? Publisher2 will be trying to execute procedure still with old column and you will receive “Procedure or function sp_MSins_dboTableA has too many arguments specified.”.

Here is an example. We dropped column id_temp on Publisher1 and then inserted one row on Publisher2:

Column dropped

Once we did that Distribution agent for Publisher2 will start failing:

Dropped column error

How to solve it and/or how to prevent it to happen?

Solution

Once you get to that point when receiving such error you should follow these steps:

Apply change (in our case drop column) on the second Publisher. This wont solve the issue straight away but it will modify replication procedure code to the same as we have on Publisher1. The DDL change will wait in the queue for delivery.
As procedure on Subscriber has 2 instead of 3 parameters we need to modify that procedure manually and include 3rd parameter.
Completing Step 2 will cause any inserts coming from Publisher1 failing as modified procedure expect @c3, meanwhile Publisher2 will deliver command that was failing before. You can also set default NULL value in the proc @c3 bigint=NULL and this wont cause error on Publisher1
Wait until change from Step 1 will be replicated down to Subscriber. It will change back procedure to version without old procedure. This will automatically fix distribution agent that will be failing (Step 2). Both Publisher will have same schema and same replication procedure code for that table.

Similar step you need to follow if u add new column to replicated table. Just instead of adding parameter you need apply old procedure (without new column) from second Publisher (Scripting out Replication Procedures).

Preventing it

You can prevent it to happen in two ways.

While you are configuring Publication. When you are adding articles to Publication you can specify INS/UPD/DEL procedure names. Just use different names for Publisher1 and Publisher2. Below you can see that both are using different procedures.
You can always modify procedures names by using sp_changearticle procedure on a Publisher. However if are receiving error on distribution agent already, this change wont help as we are using Transactional Replication the “change article” will be in the queue behind the failing command. You need to be proactive and do that change before error occur. Here is an example of modifying Insert procedure: exec sp_changearticle
@publication=’Publication2′,
@article=’tableA’,
@property=’ins_cmd’,
@value=’CALL sp_MSins_TAbleA_Publisher2′

Now important thing is that you can’t prevent this issue to occur for dropped columns as the old procedure (from second Publisher) will try to insert data into old column anyways and column will be missing. If so happens follow the steps I provided in that post.

The Best way to avoid issues with replication procedures is working closely with DEV when doing schema changes and configure you publications as mentioned above.

November 28, 2017

Replication Procedures Explained Part 1

I already wrote in few other posts about so called “replication procedures”. What are these you wonder? These procedures are used by transactional replication to do INSERT/UPDATES/DELETES on Subscriber DB.

If you did not rename it (or modify it on Publisher) the default “prefix” will be sp_MSins%, sp_MSupd%, sp_MSdel% etc. The exact proc names you can find in properties of any article published while using SSMS (Publication Properties->Articles):

procs_guI

Or just run select on published database and sysarticles table:

procs_tsql

Here is an example of Insert procedure:

procedure_text
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
if object_id(N'[sp_MSins_dboTableA]', 'P') <> 0
                                        drop proc [sp_MSins_dboTableA]
go
if object_id(N'dbo.MSreplication_objects') is not null
                                    delete from dbo.MSreplication_objects where object_name = N'sp_MSins_dboTableA'
go
create procedure [sp_MSins_dboTableA]
  @c1 int,@c2 nvarchar(400),@c3 bigint
as
begin
insert into [dbo].[TableA](
 [id]
,[TableA_text]
,[id_temp]
 )
values (
 @c1
,@c2
,@c3
 )
end
go
if columnproperty(object_id(N'dbo.MSreplication_objects'), N'article', 'AllowsNull') is not null
exec ('insert dbo.MSreplication_objects (object_name, publisher, publisher_db, publication, article, object_type) values (
                                + N''sp_MSins_dboTableA'' , N''MAINTEST\PUBLISHER'' , N''AdventureWorks2014'' , N''Publication1'' , N''TableA'' ,''P'')')

These procs are executed on Subscriber when Insert/Update/Delete is performed. You most probably noticed that there is CALL or SCALL before each procedure. This determine how these commands are created and how data is replicated down. That topic is quite big and I will cover it in separate blog post.

These procedures DON’T exists as an objects on Publisher, however you can find these on Subscriber.

proc_subscriber

Replication procedures are delivered in two ways. If you initialize subscription with Snapshot the code for replication procedures is included in SCH (schema) files of the snapshot for given table. If you choose to not initialize the procedures will be delivered as normal command (you can actually browse it in distribution database). Important thing is that any changes to schema on published table will force replication to UPDATE all the procedures code for changed tables and new version of procedures will be send down to Subscriber. Just a note on that, if you going over the WAN these procedures are delivered slowly, you just need to be aware of that especially if u changing hundreds on articles.

I already mentioned that these procedures do not exists as an object on Publisher. The question is how I can get code for these procedures on the Publishers? That is quite important question as there are some cases you will need the most “recent” procedure definition from Publisher. Remember that the procedure definition on Publisher is the actual one that is used by your replication at that point. You may have cases that code of replication procs been changed by someone or something on Subscriber and it caused replication to fail. In these cases you need the actual code from Publisher…. There are two ways of doing it.

Script out all replication procedures for given Publication. Run following code: exec sp_scriptpublicationcustomprocs @publication = ‘#publication name#’
You can script out specific article and specific procedures (delete, insert, update etc.) First you need an article ID from sysarticles. Then once you have that you need to run following procedures in order to get procedure code: exec sp_scriptinsproc #article_id# –for insert procedure exec sp_scriptupdproc #article_id# –for update procedure exec sp_scriptdelproc #article_id# –for delete procedure

Now there is problem with 2nd option. I already mention there are other ways of sending Updates or Deletes like SCALL, MCALL etc. If you using SCALL for example for updates you need to execute following: exec sp_scriptsupdproc. For MCALL exec sp_scriptmappedupdproc. For XCALL: sp_scriptxupdproc etc. If you not sure what “call” you using just check sysarticles table on your Publisher.

Last thing you need to be aware is that when you generating code for these procedures into Text Results… you need to extend maximum characters for Text Results from default 256 to max which is 8192 (new setting will be only “active” when you open new query window). Otherwise some large procedures will be truncated and incomplete. I know small thing but still you need to be aware of this.

These are basics of replication procedures in next post I will focus on what problems and issues you may encounter with these.

October 16, 2017October 15, 2017

The selected Subscriber does not satisfy the minimum version compatibility level of the selected publication.

As you may know SQL Replication can replicate data between different versions of SQL. It can replicated data from SQL 2012 to SQL 2016 etc. It can also replicate data from higher version to a lower version of SQL. However if you are trying to setup replication to a subscriber that is on higher version than your publisher you may get following error:

“The selected Subscriber does not satisfy the minimum version compatibility level”

Now the problem occurs only when you are adding a new subscriber using GUI and it is related only to version of SSMS you are using during setup.

Lets assume you are configuring subscriber that is on 2016 but your publisher and distributor is on 2012. You most likely connected to a Publisher and trying to add new subscription stream.

You have two solution for this:

Use T-sql. When setting up by using T-SQL, the version of subscriber is not being checked as you are not even trying to connect to a subscriber. Only Distribution agent will connect to it later after the setup.
As T-SQL setup could be bit difficult you have a second solution, which is to use tools that are on the same version as subscriber (in our example it should be SSMS 2016). You can do it either from Subscriber or other server. NOTE: The tools/SSMS should be located on workstation/server that have access to Publisher/Distributor and Subscriber. you need to have access to all 3 components of replication.

If you have other solution for this issue let me know in comments:)

October 6, 2017October 6, 2017

[TSQL Script] Browse replication commands

While you can use just simple stored proc to browse commands (How to “Browse” Distributor (sp_browsereplcmds explained)) you can notices few issues with that proc… for example commands are not ordered by command_id. Here is some script I created. I found it useful especially if I want see the order of commands applied to subscriber:)

You just need to provide, published database name, Seqno of transaction that you want to check (you can get it from replication monitor, query msrepl_transactions etc.) and command id that you want to check. Leave NULL if you want to see ALL commands in given transaction.

--BROWSE REPL COMMANDS

declare @publisher_db nvarchar(150)
declare @publisher_db_id int
declare @seqno nvarchar(500)
declare @seqno_bin varbinary(16)
declare @error_id int
declare @error_txt nvarchar(1000)
declare @command_id int


/*-----------------PARAMETERS---------------------*/
set @publisher_db='<Published db>'
set @seqno_bin=<LSN>
set @seqno='<LSN>'
set @command_id = <command id> -- Leave NULL if all you want to get ALL commands from that transaction.
/*-----------------------------------------------*/

create table #temp_commands (
xact_seqno    varbinary(16) NULL,
originator_srvname   varchar(100) NULL,
originator_db        varchar(100) NULL,
article_id   		 int NULL,
type        		  int NULL,
partial_command 		bit NULL,
hashkey 				int NULL,
originator_publication_id  int NULL,
originator_db_version      int NULL,
originator_lsn         varbinary	(16) NULL,
command                 nvarchar   (1024) NULL,
command_id				int NULL)

select @publisher_db_id=id from mspublisher_databases where publisher_db=@publisher_db
select @error_id=error_id from msdistribution_history where xact_seqno=@seqno_bin
select top 1 @error_txt=error_text from  dbo.MSrepl_errors where id = @error_id

insert into #temp_commands
exec sp_browsereplcmds
@xact_seqno_start=@seqno,
@xact_seqno_end=@seqno,
@publisher_database_id=@publisher_db_id

if @command_id is NULL
BEGIN
select command,command_id, @error_txt as 'Error' from #temp_commands order by command_id
END
ELSE
BEGIN
select command,command_id, @error_txt as 'Error' from #temp_commands where command_id=@command_id order by command_id
END
drop table #temp_commands

September 26, 2017

How to setup Transactional Replication? Part 2 (Publications and articles)

In Part 1 we covered configuring Publisher and Distributor server. Now you are ready to create first publications and add articles. We will focus on doing this by using SSMS.

Publication

First step is to create Publication on a database that you want to publish. Since you already setup Publisher and Distributor you should be able to extend Replication tree and Right Click on Publication, choose New Publication:

NewPublication

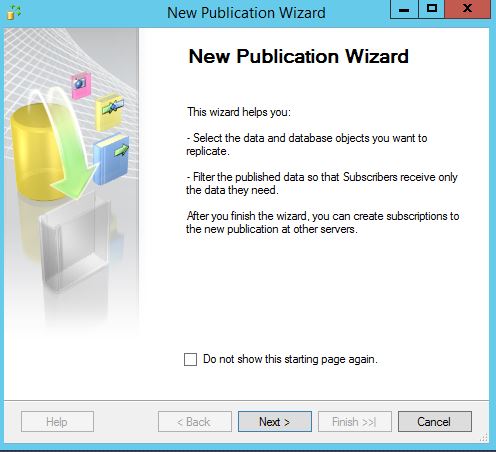

This will open new Publication Wizard:

NewPubwizard

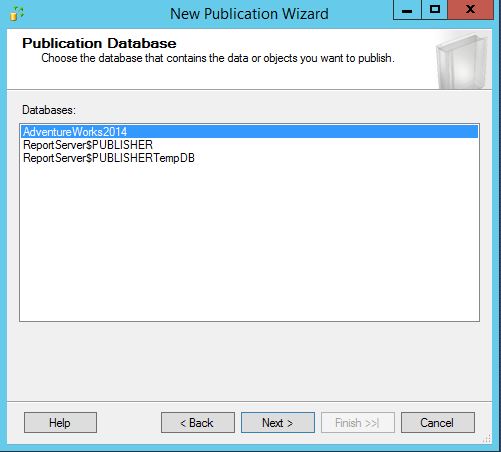

On the Next window you will need to choose which database you want to publish. This will enable given database for Publishing:

Choosingdatabase

In next step you need to choose type of replication. We focusing only on Transactional Replication and we choosing that one:

ReplicationType

Now you need to choose articles. You can choose Tables, Procedures, Functions etc. In my DB I have only Tables:

ChoosingArticles

You can extend each Table to get column list and you can “filter” it vertically by removing some columns from replication. You don’t need to replicate entire table schema.

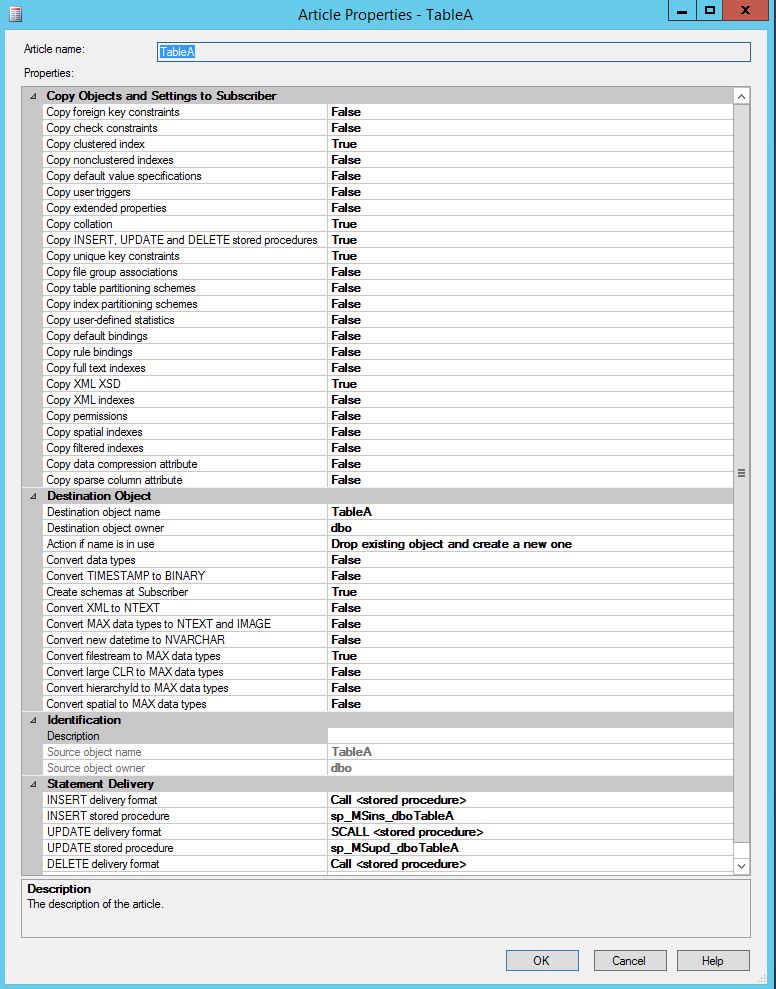

On the right side you have Article Properties button. You either set Properties for highlighted article or for ALL articles in this Publications. The list of the settings is quite impressive.

Articles Properties

You can decide if you want to copy triggers, all indexes, if table will be dropped on subscriber, choose if you want to send deletes or not etc. There are plenty of settings that you can modify. Choose wisely as some of these settings can invalidate snapshot and you will need to re-snapshot publication. As there are so many of these properties I will go describe it more in separate post.

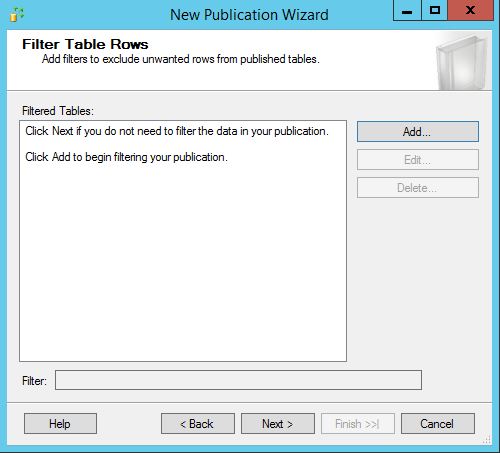

In next step you can “filter” articles horizontally by adding WHERE condition. For Example you want to replicate only new data then you can set condition on date column etc.

FilteringRows

As you can see amount of properties and configurations that you can use are making replication very flexible:)

In next step you need to decide when Initial Snapshot will be run. If you don’t want to choose anything, you can always run it manually from replication Monitor. You can either schedule Snapshot or choose to generate snapshot straight after publication will be created:

Snapshot

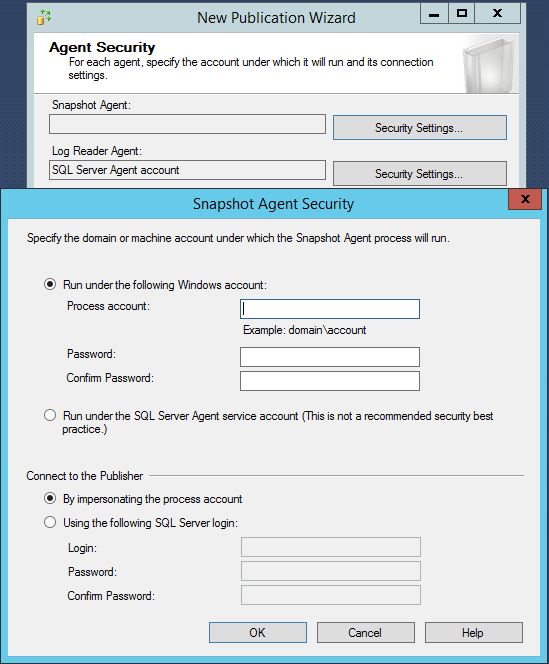

Next step is to configure Security settings for LogReader and Snapshot agent:

SecuritySettings

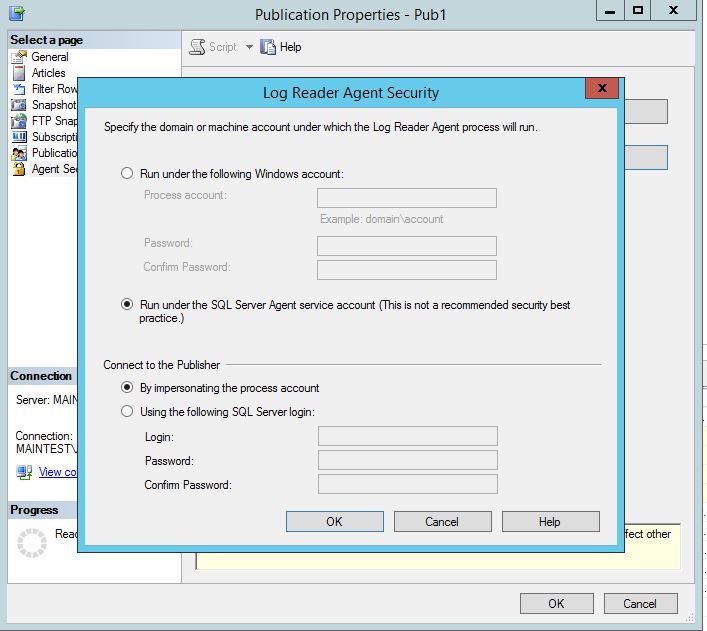

I already explained (Understanding Replication Agents Part 1 , Understanding Replication Agents Part 2 ) How Replication Agents work. In that place you configuring Processing Account (under what account jobs and exec will be running) and what account will be used in order to connect to Publisher. You can setup different account for LogReader and Snapshot. You also need to keep in mind that account that will be used to connect to Publisher need to have relevant permissions (sysadmin) on Publisher. That account will be generating Snapshot and reading transaction log on Published database.

SecuritySettings

For this example I choose for both SQL Service account. NOTE: I needed to grant permission for Distributor (if remote one) SQL service account on Publisher. If you choosing different processing account for Snapshot than SQL service account, you need to make sure that this account have permissions do file system on Distributor. Snapshot agent will be creating folders and files on disk. SQL Service will have that permissions but if you use different account you may have issues when generating snapshot.

In next step you can choose that either Publication will be created or just generate the script for the Publication you just configuring (or both):

Createorscript

It could be useful to save T-Sql script as it may me useful in future. It is also nice to see what exactly happen when you configuring Publication (as there are many procs executed and configuration changed during that process that you do not see when using SSMS).

Finally we can put name of our Publication and Finish configuration:

Naming Publication

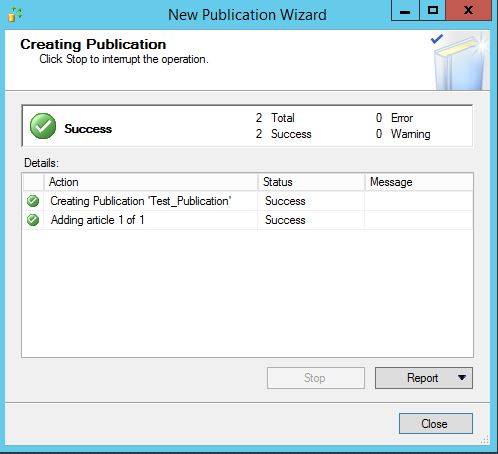

If all went well you will see new Publication in your SSMS:

Completed

DonePublication

This is pretty much entire process of creating basic publication for Transactional Replication. Easy?? Yeah it is easy we will go bit “deeper” in next post.

In next posts will describe some of the articles settings that you can modify, creating subscriptions and configuring Publications/Subscriptions by using T-sql.

September 5, 2017September 5, 2017

Understanding Replication Agents Part 2

What is really happening when snapshot, logreader and distribution job is running on SQL Server? I will try to explain in that blog post.

SQL Jobs

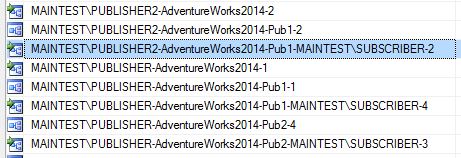

As I described before in Part 1 All replication agents are really SQL Jobs located either on Distributor server or in some cases (pull replication) on Subscribers. When you go inside the SQL job (exactly second step of the job) like distribution agent u will see few strange (or not so strange) things/parameters like this:

-Subscriber [MAINTEST\SUBSCRIBER] -SubscriberDB [subscriberDB] -Publisher [MAINTEST\PUBLISHER] -Distributor [MainTest\DISTRIBUTOR] -DistributorSecurityMode 1 -Publication [Pub1] -PublisherDB [AdventureWorks2014] -Continuous

It is pretty self-explanatory however there is more than only above settings. In this place you can modify subscriber or Distributor Authentication, you add multiple streams or hard code what agent profile it should use etc. Full list of settings you can find here… and it is quite a list:)

Distribution Agent Settings

Snapshot Agent Settings

LogReader Agent Settings

I need to make note that if you make change in SQL job it will override specific settings that you set via GUI. For Example if you use parameter [-ProfileName profile_name] this setting will be always used, even when you change agent profile using Replication Monitor.

Last thing that is crucial, you need to stop and start agent to make new settings “live”.

Execs

Now, how these setting are really executed? How it really works? Well it is pretty straight forward. It is using execs from COM folder where you installed SQL Server (mostly Program Files etc.).You can also go to Distributor and look at Task Manager on the server, you will notice these execs running:

execs

You can also see under what account that exec is running. There is one particular reason why you should not run ALL your agents under SQL Service account. I will describe it later in different post.

Each agent has different exec:

LogReader -> logread.exe

Snapshot -> snapshot.exe

Distribution -> Distrib.exe

The interesting thing is that you can execute this execs manually from cmd line, using your own account. You will ask why? I found few moments in my career that I need to check route cause of agent failure and replication monitor or SQL Job history did not give me any error. This is the way you can check if you have permission , authentication or user memory issue (more about memory in different post).

First stop the agent you want to test, otherwise you will get an error that agent already running. Then go to COM folder in your SQL server installation files:

Com_Path

Copy ALL settings from second step of SQL Job/Agent and paste it after either distrib.exe, snapshot.exe or logread.exe. I did distrib.exe:

exec_command

Execute:

exe_command_results

You can see all the information about subscription you are trying to run and under what settings it is running. Note that SQL job wont be started and when you go to Replication Monitor you will see that agent is running, however you WONT be able to stop it from here. In order to stop agent you need to close cmd window or just press Ctrl+C, it will stop the exec process and Replication Monitor will be refreshed as well.

I used this way few times at my work and it is good to know how replication is working and operates. Once you know this it is easier to troubleshoot some of the issues that occur.

August 4, 2017September 5, 2017

How to “Browse” Distribution Db (LSN/seqno explained)

You ever wonder if you can get more information what is actually replicated in your system or how to get exact commands/transactions that been replicated?

I believe you did:). As I mentioned before Transactional Replication operates on LSN (sequence numbers of transactions). Understanding how sequence number works is crucial thing. Lets try to explain.

Once Log Reader read the transaction log of published database it is putting information about transaction and commands into system tables into relevant distribution database. The system tables I mentioned are msrepl_transactions and msrepl_commands. First one contains one row for each transaction and second all commands for given transaction. The most important column is xact_seqno which is the transaction ID and you can join these two tables on that column (and publisher_database_id) to get what commands are included in what transactions.

select top 10 * from MSrepl_transactions (NOLOCK) t
join MSrepl_commands (NOLOCK) c
on t.publisher_database_id=c.publisher_database_id
and t.xact_seqno= c.xact_seqno

Now, How you get current LSN that is being delivered. There are two ways. First one is to check msdistribution_history system table for given distribution agent. Second is to check subscriber and system table msreplication_subscriptions and get current_timestamp. That values is the information about last delivered transaction and as the replication is sequential next seqno in the queue will be the one that is currently delivered. With both there are issues that you need to be aware of. I noticed that misdistribution_history is not live data and it is refreshed with some delay. The problem with second solution is that the next seqno that you get from distribution database could belong to different publication (there is no pubid column in these tables). To over come this you can filter by article id, however then you need to join msrepl_commands table and this can be quite heavy query. Here are the examples:

On Subscriber:

select publisher,publisher_Db, publication,transaction_timestamp from MSreplication_subscriptions

msreplication_subscriptions

On Distribution database:

select top 10 * from MSrepl_transactions (NOLOCK) t
join MSrepl_commands (NOLOCK) c
on t.publisher_database_id=c.publisher_database_id
and t.xact_seqno= c.xact_seqno
join MSarticles a
on a.article_id=c.article_id
join MSpublications pub
on a.publication_id = pub.publication_id
where t.xact_seqno >= <seqno from subscriber>
and pub.publication =< publication name>
order by t.xact_seqno asc

LSN/sequence number is often used in order to troubleshoot replication issues. While u checking replication monitor for failing distribution agent you will get and error that includes seqno and a command id. With these you can find what command exactly failing. In order to do that you need system procedure located on distributor called sp_browsereplcmds. This procedure allows you to browse actual commands. More on that next post.

How to “Browse” Distributor (sp_browsereplcmds explained)

July 3, 2017

Understanding Replication Agents Part 1

3 Musketeers …LogReader, Snapshot, Distribution

First two (Logreader and Snapshot) are directly impacting Publisher. First is to read the log, find replicated transactions and put it into distribution database. Snapshot is used to make snapshot of schema, indexes, constraints, data etc. It will generate schema, bcp files on distributor (folder that the snapshot will be generated is configurable).

Last one, the Distribution agent is responsible for delivering the data that Logreader or Snapshot generated. In my experience the most issues we have is with this agent.

These three agents are actually SQL Jobs and you can start/stop and manage it in few ways. Trough replication monitor, by right clicking on Publication (View Sanpshot/Logreader status) or Subscription (View synchronization Status) and Job Activity Monitor (on distribution server).
Job naming convention is exactly the same for Types of Agents. Snapshot will have publisher name,published db name, publication name. Log Reader will have only publisher name and published db name. Distribution Agent will have publisher name, published db name, publication name, subscriber name.

REplication_Agents_jobs

In all three cases if the names are too long some strings will be truncated. Also the number at the end of each job name is the “agent id” and it is matching the id in system tables in distribution database.

Because Im dealing with quite big volume of replication agents I often like to use job Activity monitor to manage my agents. You will notice that after configuring publisher/distributor and creating your first publication/subscription in Job Activity Monitor you can find new Categories of jobs. All replication related jobs has “REPL-” prefix.

Repl-Snapshot
Repl-Distribution
Repl-Logreader
Repl-Distribution Cleanup

new_job categories

You can easily filter these and if you ever need to start/stop multiple agents you can do it that way. Very useful when you want to change agent profiles on multiple agents and in order to new profile start working you need to restart the agent.

Last thing about this is the job history often gives you better information about errors occurred than Replication monitor. If you need more details about error always check job history of given agent.

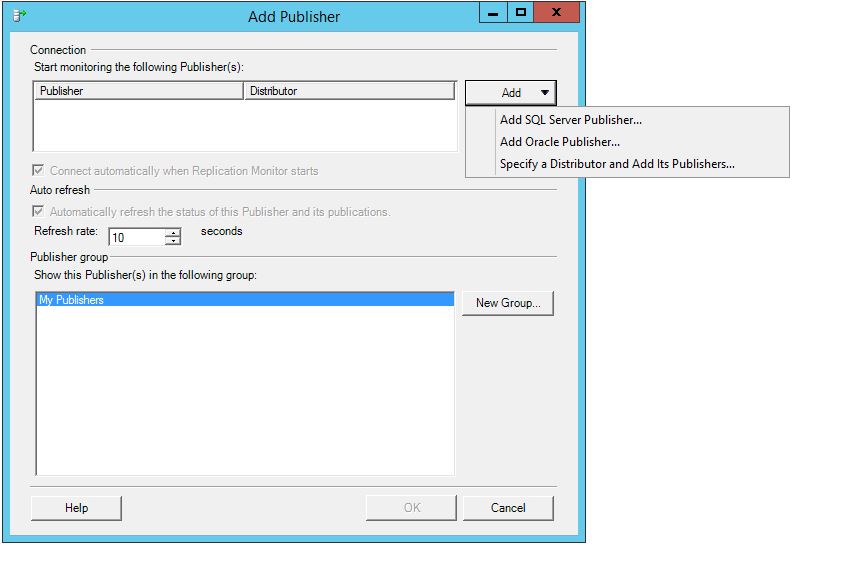

As mentioned before you can also use Replication Monitor (right click on Replication tree) to manage your agents. If you using Replication Monitor for the first time you need to register your publishers first in order to see it on the tree list on left pane. You can either register the publisher one by one or add entire Distributor. This is useful thing when you using one distributor for many publishers is to choose Add Distributor (Specify a Distributor and add Its Publishers…)

registering new distributors

By doing it, you will add ALL Publishers that are using that distributor. The Replication Monitor connects only to Distributor and you don’t need the direct connection to Publisher. The agents in Replication Monitor are split between the tabs like Subscriptions Watch list and Agents. In Subscriptions you will find all your subscriptions for give publisher and you can drill down to given publication on left pane if needed. In Agents tab you will find all Snapshot, LogReader agents but by default you will see LogReader agents and if you want to Snapshot you need to use drop down list to see other ones. What is nice with Replication Monitor is that you can go directly to the SQL job settings/history on distributor. You just need to choose agent, choose Action and from there Job Settings. It will open normal job properties window as you getting by using Job Activity Monitor (note: This wont work if you connected to distributor and you are using pull replication).
