Understanding Replication Agents Part 1

3 Musketeers …LogReader, Snapshot, Distribution

First two (Logreader and Snapshot) are directly impacting Publisher. First is to read the log, find replicated transactions and put it into distribution database. Snapshot is used to make snapshot of schema, indexes, constraints, data etc. It will generate schema, bcp files on distributor (folder that the snapshot will be generated is configurable).

Last one, the Distribution agent is responsible for delivering the data that Logreader or Snapshot generated. In my experience the most issues we have is with this agent.

These three agents are actually SQL Jobs and you can start/stop and manage it in few ways. Trough replication monitor, by right clicking on Publication (View Sanpshot/Logreader status) or Subscription (View synchronization Status) and Job Activity Monitor (on distribution server).

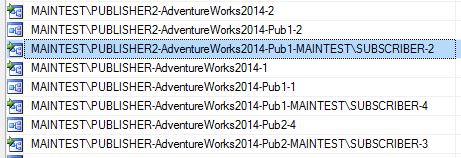

Job naming convention is exactly the same for Types of Agents. Snapshot will have publisher name,published db name, publication name. Log Reader will have only publisher name and published db name. Distribution Agent will have publisher name, published db name, publication name, subscriber name.

REplication_Agents_jobs

In all three cases if the names are too long some strings will be truncated. Also the number at the end of each job name is the “agent id” and it is matching the id in system tables in distribution database.

Because Im dealing with quite big volume of  replication agents I often like to use job Activity monitor to manage my agents. You will notice that after configuring publisher/distributor and creating your first publication/subscription in Job Activity Monitor you can find new Categories of jobs. All replication related jobs has “REPL-” prefix.

  • Repl-Snapshot
  • Repl-Distribution
  • Repl-Logreader
  • Repl-Distribution Cleanup

new_job categories

You can easily filter these and if you ever need to start/stop multiple agents you can do it that way. Very useful when you want to change agent profiles  on multiple agents and in order to new profile start working you need to restart the agent.

Last thing about this is the job history often gives you better information about errors occurred than Replication monitor. If you need more details about error always check job history of given agent.

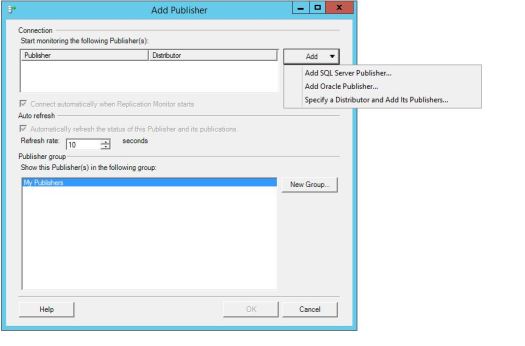

As mentioned before you can also use Replication Monitor (right click on Replication tree) to manage your agents. If you using Replication Monitor for the first time you need to register your publishers first in order to see it on the tree list on left pane. You can either register the publisher one by one or add entire Distributor. This is useful thing when you using one distributor for many publishers is to choose Add Distributor (Specify a Distributor and add Its Publishers…)

registering new distributors

By doing it, you will add ALL Publishers that are using that distributor. The Replication Monitor connects only to Distributor and you don’t need the direct connection to Publisher. The agents in Replication Monitor are split between the tabs like Subscriptions Watch list and Agents. In Subscriptions you will find all your subscriptions for give publisher and you can drill down to given publication on left pane if needed. In Agents tab you will find all Snapshot, LogReader agents but by default you will see LogReader agents and if you want to Snapshot you need to use drop down list to see other ones. What is nice with Replication Monitor is that you can go directly to the SQL job settings/history on distributor. You just need to choose agent, choose Action and from there Job Settings. It will open normal job properties window as you getting by using Job Activity Monitor (note: This wont work if you connected to distributor and you are using pull replication).
